C:\Documents and Settings\akilian\Desktop\finaljoint\Analysis1.CATAnalysis

MESH:


Entity Size
Nodes 1147
Elements 3577

ELEMENT TYPE:


Connectivity Statistics
TE4 3418 ( 95.55% )
SPIDER 159 ( 4.45% )

ELEMENT QUALITY:


Criterion Good Poor Bad Worst Average
Skewness 3026 ( 88.53% ) 391 ( 11.44% ) 1 ( 0.03% ) 0.903 0.579
Stretch 3418 ( 100.00% ) 0 ( 0.00% ) 0 ( 0.00% ) 0.386 0.533
Min. Length 3418 ( 100.00% ) 0 ( 0.00% ) 0 ( 0.00% ) 3.527 6.057
Max. Length 3418 ( 100.00% ) 0 ( 0.00% ) 0 ( 0.00% ) 20.025 15.349
Shape Factor 3418 ( 100.00% ) 0 ( 0.00% ) 0 ( 0.00% ) 0.390 0.553
Length Ratio 3418 ( 100.00% ) 0 ( 0.00% ) 0 ( 0.00% ) 4.198 2.646

Properties.1

Material apply to

  Part1.1 - OCTREE Tetrahedron Mesh.1 : Part1.1
  Part1.1.1 - OCTREE Tetrahedron Mesh.2 : Part1.1.1


Material Bright Oak
Young Modulus 1.32e+010N_m2
Poisson Ratio 0
Density 735kg_m3
Thermal Expansion 0
Yield Strength 0N_m2

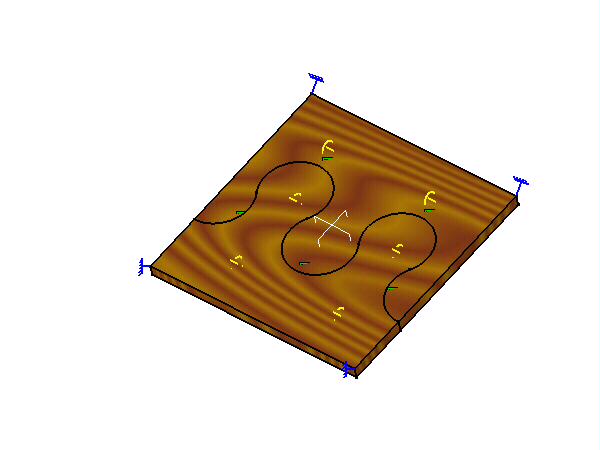

Static Case

Boundary Conditions

STRUCTURE Computation

Number of nodes : 1147
Number of elements : 3577
Number of D.O.F. : 3441
Number of Contact Elements : 159
Number of Kinematic relations : 318

RESTRAINT Computation

Name: RestraintSet.1

Number of S.P.C : 102

LOAD Computation

Name: LoadSet.1

Applied load resultant :

Fx = 2 . 980e-007  N
Fy = 1 . 188e-009  N
Fz = -2 . 272e-006  N
Mx = -3 . 281e-007  Nxm
My = 4 . 153e-009  Nxm
Mz = 2 . 452e-008  Nxm

STIFFNESS Computation

Number of lines : 3441
Number of coefficients : 60396
Number of blocks : 1
Maximum number of coefficients per bloc : 60396
Total matrix size : 0 . 70  Mb


SINGULARITY Computation

Restraint: RestraintSet.1

Number of local singularities : 0
Number of singularities in translation : 0
Number of singularities in rotation : 0
Generated constraint type : MPC

CONSTRAINT Computation

Restraint: RestraintSet.1

Number of constraints : 420
Number of factorized constraints : 400
Number of deferred constraints : 0

NUMBERING Computation

Restraint: RestraintSet.1

Numbering Method : SLOAN
Number of connected nodes : 1147
Nodal maximum front width : 75
Nodal maximum band width : 347

Method :  SPARSE
Number of factorized degrees : 3041
Number of supernodes : 560
Number of overhead indices : 29725
Number of coefficients : 439206
Maximum front width : 653
Maximum front size : 213531
Size of the factorized matrix (Mb) : 3 . 35088
Number of blocks : 1
Number of Mflops for factorization : 1 . 430e+002
Number of Mflops for solve : 1 . 772e+000
Minimum relative pivot : 8 . 512e-003

Name: StaticSet.1

Restraint: RestraintSet.1

Load: LoadSet.1

Strain Energy : 2.123e-002 J

Contact Analysis

Contact
Element
Contact
Force
N
Initial
Clearance
mm
Final
Clearance
mm
1 No Contact -1.0000e-003 2.9538e-004
2 4.3631e+001 -1.0000e-003 0.0000e+000
3 3.9763e+001 -1.0000e-003 0.0000e+000
4 No Contact -1.0000e-003 2.2810e-004
5 No Contact -1.0000e-003 1.2543e-003
6 No Contact -1.0000e-003 1.3346e-003
7 No Contact -1.0000e-003 1.2491e-003
8 No Contact -1.0000e-003 4.4599e-004
9 No Contact -1.0000e-003 2.3273e-004
10 No Contact -1.0000e-003 5.0008e-006
11 1.4946e+001 -1.0000e-003 0.0000e+000
12 No Contact -1.0000e-003 4.9539e-005
13 2.9236e+000 -1.0000e-003 0.0000e+000
14 No Contact -1.0000e-003 2.7793e-004
15 No Contact -1.0000e-003 3.1015e-004
16 2.9691e+001 -1.0000e-003 0.0000e+000
17 5.5755e+001 -1.0000e-003 0.0000e+000
18 No Contact -1.0000e-003 6.4441e-004
19 No Contact -1.0000e-003 9.9822e-004
20 No Contact -1.0000e-003 -1.0000e-003
21 2.9046e+001 -1.0000e-003 0.0000e+000
22 No Contact -1.0000e-003 6.2116e-004
23 No Contact -1.0000e-003 4.0069e-004
24 No Contact -1.0000e-003 1.9425e-004
25 No Contact -1.0000e-003 1.1279e-004
26 3.4756e+001 -1.0000e-003 0.0000e+000
27 2.0600e+001 -1.0000e-003 0.0000e+000
28 2.7345e-001 -1.0000e-003 0.0000e+000
29 3.5047e+000 -1.0000e-003 0.0000e+000
30 No Contact -1.0000e-003 2.9483e-005
31 No Contact -1.0000e-003 -1.0000e-003
32 No Contact -1.0000e-003 1.4813e-004
33 No Contact -1.0000e-003 2.2671e-004
34 1.1472e+001 -1.0000e-003 0.0000e+000
35 3.2620e+000 -1.0000e-003 0.0000e+000
36 2.3354e+000 -1.0000e-003 0.0000e+000
37 7.5340e+001 -1.0000e-003 0.0000e+000
38 7.0502e+001 -1.0000e-003 0.0000e+000
39 8.0925e+000 -1.0000e-003 0.0000e+000
40 1.9295e+001 -1.0000e-003 0.0000e+000
41 No Contact -1.0000e-003 6.2439e-005
42 2.0529e+000 -1.0000e-003 0.0000e+000
43 3.8877e+001 -1.0000e-003 0.0000e+000
44 No Contact -1.0000e-003 6.1693e-005
45 No Contact -1.0000e-003 5.7501e-004
46 No Contact -1.0000e-003 7.1008e-004
47 No Contact -1.0000e-003 6.6736e-004
48 No Contact -1.0000e-003 3.1749e-004
49 No Contact -1.0000e-003 2.0332e-005
50 2.1130e+000 -1.0000e-003 0.0000e+000
51 1.3883e+001 -1.0000e-003 0.0000e+000
52 5.9944e+001 -1.0000e-003 0.0000e+000
53 No Contact -1.0000e-003 1.2792e-004
54 6.2214e+001 -1.0000e-003 0.0000e+000
55 3.1282e+001 -1.0000e-003 0.0000e+000
56 1.8510e+001 -1.0000e-003 0.0000e+000
57 1.0880e+001 -1.0000e-003 0.0000e+000
58 No Contact -1.0000e-003 7.5663e-004
59 No Contact -1.0000e-003 6.3266e-004
60 1.9362e+001 -1.0000e-003 0.0000e+000
61 No Contact -1.0000e-003 4.7903e-005
62 3.8601e+001 -1.0000e-003 0.0000e+000
63 6.8847e-001 -1.0000e-003 0.0000e+000
64 1.0092e+001 -1.0000e-003 0.0000e+000
65 No Contact -1.0000e-003 1.0180e-004
66 No Contact -1.0000e-003 1.6253e-004
67 1.3520e+001 -1.0000e-003 0.0000e+000
68 3.7310e+000 -1.0000e-003 0.0000e+000
69 7.6110e+000 -1.0000e-003 0.0000e+000
70 No Contact -1.0000e-003 5.6805e-004
71 No Contact -1.0000e-003 3.3530e-004
72 No Contact -1.0000e-003 7.8405e-005
73 6.0530e+001 -1.0000e-003 0.0000e+000
74 No Contact -1.0000e-003 -1.0000e-003
75 2.6523e+000 -1.0000e-003 0.0000e+000
76 1.4043e+001 -1.0000e-003 0.0000e+000
77 1.5359e+001 -1.0000e-003 0.0000e+000
78 9.2772e+000 -1.0000e-003 0.0000e+000
79 No Contact -1.0000e-003 -1.0000e-003
80 No Contact -1.0000e-003 2.5953e-005
81 No Contact -1.0000e-003 6.4006e-004
82 No Contact -1.0000e-003 7.3177e-004
83 1.5443e+001 -1.0000e-003 0.0000e+000
84 1.7133e+001 -1.0000e-003 0.0000e+000
85 No Contact -1.0000e-003 7.9468e-004
86 No Contact -1.0000e-003 1.0594e-004
87 No Contact -1.0000e-003 1.0945e-004
88 No Contact -1.0000e-003 6.8934e-004
89 1.7532e+000 -1.0000e-003 0.0000e+000
90 3.0024e+001 -1.0000e-003 0.0000e+000
91 7.3712e+001 -1.0000e-003 0.0000e+000
92 2.7110e+001 -1.0000e-003 0.0000e+000
93 3.8722e+001 -1.0000e-003 0.0000e+000
94 7.0611e+001 -1.0000e-003 0.0000e+000
95 6.0520e+001 -1.0000e-003 0.0000e+000
96 7.9603e+000 -1.0000e-003 0.0000e+000
97 No Contact -1.0000e-003 3.8310e-004
98 No Contact -1.0000e-003 -1.0000e-003
99 No Contact -1.0000e-003 7.1732e-004
100 3.8964e+001 -1.0000e-003 0.0000e+000
101 1.9441e+001 -1.0000e-003 0.0000e+000
102 3.4000e+000 -1.0000e-003 0.0000e+000
103 1.6989e+000 -1.0000e-003 0.0000e+000
104 No Contact -1.0000e-003 2.0655e-004
105 No Contact -1.0000e-003 4.1849e-004
106 No Contact -1.0000e-003 1.3456e-004
107 No Contact -1.0000e-003 6.0646e-004
108 9.5968e+000 -1.0000e-003 0.0000e+000
109 No Contact -1.0000e-003 1.2944e-004
110 No Contact -1.0000e-003 4.5681e-004
111 1.2408e+001 -1.0000e-003 0.0000e+000
112 No Contact -1.0000e-003 1.0393e-004
113 3.2807e+000 -1.0000e-003 0.0000e+000
114 1.2041e+001 -1.0000e-003 0.0000e+000
115 No Contact -1.0000e-003 -1.0000e-003
116 1.0236e+001 -1.0000e-003 0.0000e+000
117 6.9384e+001 -1.0000e-003 0.0000e+000
118 1.3015e+001 -1.0000e-003 0.0000e+000
119 6.7366e+001 -1.0000e-003 0.0000e+000
120 4.8277e+001 -1.0000e-003 0.0000e+000
121 1.0927e+001 -1.0000e-003 0.0000e+000
122 No Contact -1.0000e-003 1.1900e-005
123 No Contact -1.0000e-003 6.7575e-004
124 No Contact -1.0000e-003 -1.0000e-003
125 No Contact -1.0000e-003 4.0399e-004
126 No Contact -1.0000e-003 2.2614e-004
127 3.4250e+001 -1.0000e-003 0.0000e+000
128 No Contact -1.0000e-003 8.3996e-004
129 No Contact -1.0000e-003 -1.0000e-003
130 6.8789e+001 -1.0000e-003 0.0000e+000
131 No Contact -1.0000e-003 4.1939e-005
132 2.9511e+000 -1.0000e-003 0.0000e+000
133 No Contact -1.0000e-003 6.5603e-004
134 No Contact -1.0000e-003 8.1291e-004
135 No Contact -1.0000e-003 6.4345e-004
136 No Contact -1.0000e-003 1.4827e-004
137 No Contact -1.0000e-003 -1.0000e-003
138 4.0829e+001 -1.0000e-003 0.0000e+000
139 No Contact -1.0000e-003 1.0355e-003
140 8.1128e+000 -1.0000e-003 0.0000e+000
141 No Contact -1.0000e-003 1.1889e-004
142 5.2716e+001 -1.0000e-003 0.0000e+000
143 No Contact -1.0000e-003 9.6730e-004
144 No Contact -1.0000e-003 1.0454e-004
145 No Contact -1.0000e-003 4.3796e-004
146 No Contact -1.0000e-003 1.6845e-004
147 No Contact -1.0000e-003 3.8620e-004
148 No Contact -1.0000e-003 1.0545e-003
149 No Contact -1.0000e-003 3.7650e-004
150 No Contact -1.0000e-003 4.7381e-004
151 6.1334e+001 -1.0000e-003 0.0000e+000
152 No Contact -1.0000e-003 1.2204e-003
153 No Contact -1.0000e-003 1.9942e-004
154 1.2106e+001 -1.0000e-003 0.0000e+000
155 7.1140e+000 -1.0000e-003 0.0000e+000
156 3.2412e+001 -1.0000e-003 0.0000e+000
157 No Contact -1.0000e-003 -1.0000e-003
158 2.3465e+001 -1.0000e-003 0.0000e+000
159 2.1331e+001 -1.0000e-003 0.0000e+000


Equilibrium

Components Applied
Forces
Reactions Residual Relative
Magnitude Error
Fx (N) 2.9802e-007 -2.9805e-007 -2.3874e-011 2.2265e-013
Fy (N) 1.1878e-009 -1.1956e-009 -7.7598e-012 7.2368e-014
Fz (N) -2.2724e-006 2.2724e-006 1.9782e-011 1.8448e-013
Mx (Nxm) -3.2815e-007 3.2814e-007 -1.3194e-011 1.2304e-012
My (Nxm) 4.1532e-009 -4.1411e-009 1.2027e-011 1.1216e-012
Mz (Nxm) 2.4521e-008 -2.4522e-008 -4.9349e-013 4.6022e-014

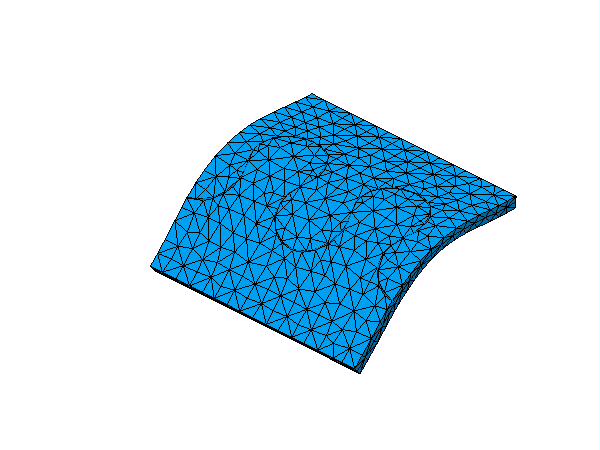

Static Case Solution.1 - Deformed Mesh

Display On Boundary ---- Over all the Model

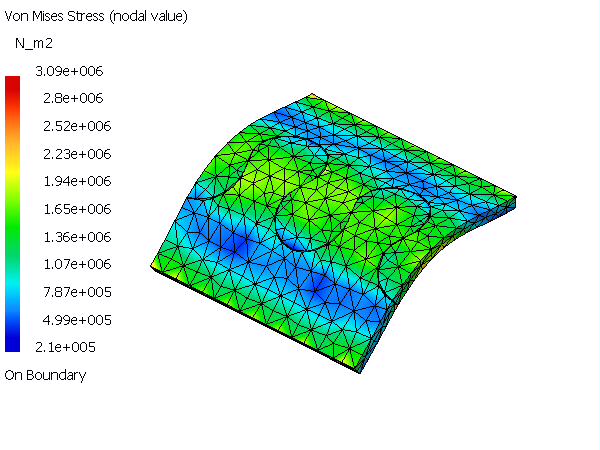

Static Case Solution.1 - Von Mises Stress (nodal value)

Components : ALL

Display On Boundary ---- Over all the Model

Other Sensors


Sensor Name Sensor Value
Energy 0.021J
